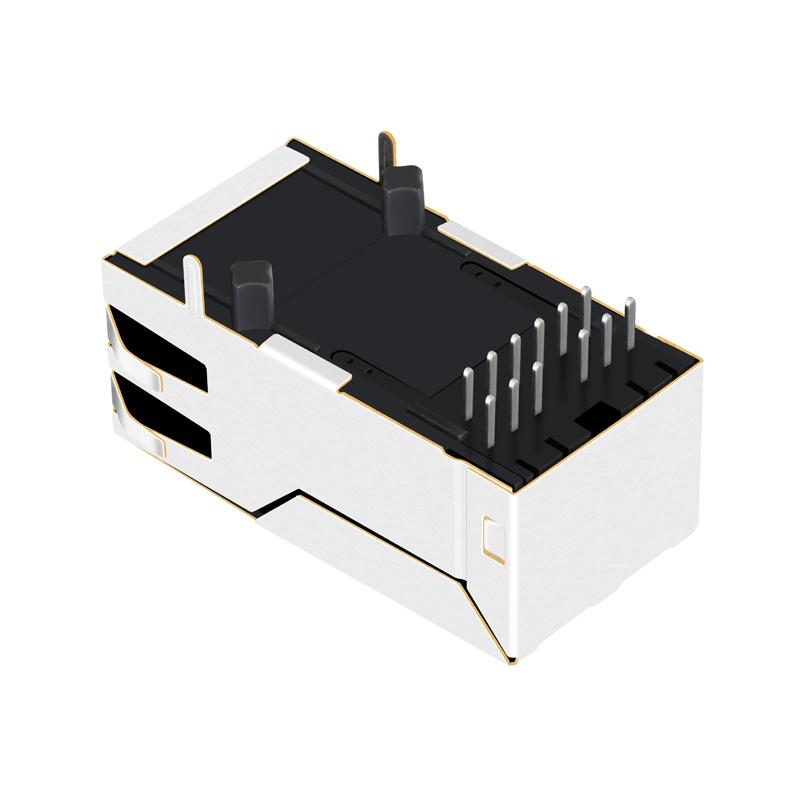

1840425-2 | Modular Connector PoE RJ45 Jack Price
1840425-2 | Modular Connector PoE RJ45 Jack Price |
Tyco Part Number |
1840425-2 |
LINK-PP Part Number |
LPJK2064CNL |
Application-Lan |
ETHERNET(PoE) |
AutomDX |
YES |
Bst Circuit |
YES |
Configuration RX |
T,C |
Configuration TX |
T,C |
Contact Mating Area Plating |
GOLD 6u"/15u"/30u" |
Cores per Port |
8 |
Diodes |
NO DIODES |
LED Option |
WITHOUT LEDS |
Latch |
TAB UP |
Number of Ports |
1X1 |
PCB |
FR4 |
PCB Mount Angle |
SIDE ENTRY |
PCB Retaining Post |
T POST |
Package Height (Inches) |
0.531 |
Package Height (mm) |
13.50 |
Package Length (Inches) |
1.30 |
Package Length (mm) |
33.02 |
Package Width (Inches) |
0.654 |
Package Width (mm) |
16.60 |
Pin Type |
THT SOLDER |
RoHS Compliant |
YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
Search |
YES |
Shield EMI Tabs |
WITH |
Speed |
1000 BASE-T |
Temperature |
0 TO + 70℃ |
Turns Ratio RX |
1CT:1CT |
Turns Ratio TX |
1CT:1CT |
