• XFG1-IB1OOJM-CLxu4MS | 1X4 RJ45 Connectors with 1000 Base-T Integrated Magnetics
  • XFG1-IB1OOJM-CLxu4MS | 1X4 RJ45 Connectors with 1000 Base-T Integrated Magnetics
  • XFG1-IB1OOJM-CLxu4MS | 1X4 RJ45 Connectors with 1000 Base-T Integrated Magnetics
  • XFG1-IB1OOJM-CLxu4MS | 1X4 RJ45 Connectors with 1000 Base-T Integrated Magnetics
  • XFG1-IB1OOJM-CLxu4MS | 1X4 RJ45 Connectors with 1000 Base-T Integrated Magnetics

XFG1-IB1OOJM-CLxu4MS | 1X4 RJ45 Connectors with 1000 Base-T Integrated Magnetics

Model No.︰

XFG1-IB1OOJM-CL

Brand Name︰

LINK-PP

Country of Origin︰

China

Minimum Order︰

100 pc

Share on:

Product Description

XFG1-IB1OOJM-CLxu4MS | 1X4 RJ45 Connectors with 1000 Base-T Integrated Magnetics

XFG1-IB1OOJM-CLxu4MS | 1X4 RJ45 Connectors with 1000 Base-T Integrated Magnetics

XFG1-IB1OOJM-CLxu4MS | 1X4 RJ45 Connectors with 1000 Base-T Integrated Magnetics
XFMRC Part Number XFG1-IB1OOJM-CLxu4MS
LINK-PP Part Number LPJG46813AFNL
Application-Lan ETHERNET(NoN PoE)
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port 8
Diodes NO DIODES
LED Option GREEN/YELLOW
Latch TAB DOWN
Number of Ports 1X4
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Package Height (Inches) 0.533
Package Height (mm) 13.55
Package Length (Inches) 0.838
Package Length (mm) 21.30
Package Width (Inches) 2.328
Package Width (mm) 59.12
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs WITH
Speed 1000 BASE-T
Temperature 0 TO + 70℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT

XFG1-IB1OOJM-CLxu4MS | 1X4 RJ45 Connectors with 1000 Base-T Integrated Magnetics

● LINK-PP Is The Preferred Supplier OfTI Samsung Siemens…

Welcome To Visit The TI Website:www.ti.com,You Will Look At Our Logo “LINK-PP” On

BeagleBone Board

XFG1-IB1OOJM-CLxu4MS | 1X4 RJ45 Connectors with 1000 Base-T Integrated MagneticsXFG1-IB1OOJM-CLxu4MS | 1X4 RJ45 Connectors with 1000 Base-T Integrated MagneticsXFG1-IB1OOJM-CLxu4MS | 1X4 RJ45 Connectors with 1000 Base-T Integrated Magnetics

Why Choose Us

World’s Leader Supplier Of Integrated RJ45 Connector,Discrete Magnetic Transformers And

Optical Transceiver Modules

Professional Certification

•ISO 9001:2008

•UL Certification

•Reach Cetitifaction

•RoHS Compliance

•Active Environmental Policy

100% Guarantee Qualtiy

•Manufactured Under Strict Controls.

•100% Tested (Not Just Batch Tested)

•LINK-PP Is OEM Of TE (Tyco) For 10 Years

•Successful Customer:Texas Instruments  Samsung Cisco Siemens And Intel…

•LINK-PP Is The Preferred Supplier Of TI (Texas Instruments)

•Quality Guarantee:6 Years

Competitive Price And Service

•More Competitive Price Than Pulse Tyco Halo And Amphenol

•Delivery Time:2-3 Weeks After Orders

•Free Samples Are Available

•Provide New Design For Customer Requirements

•90% Off Shipping Cost By DHL UPS DEDEX Or TNT

LINK-PP Corporate Policy

•The Corporate Goal Is To Achieve The Highest Level Of Customer Satisfaction

   Through Continuous Improvements In Quality, Delivery And Service

• LINK-PP Is Committed To And Expects Quality Performance From Every Employee

• The Company Standard Is Defect-Free Products And Services

XFG1-IB1OOJM-CLxu4MS | 1X4 RJ45 Connectors with 1000 Base-T Integrated Magnetics



Payment Terms︰ TT/LC/DP/DA/Paypal/Western Union/MoneyGram
Packing︰ 20 pcs in 1 tray,22 trays in 1 carton, which is 37*30*30 cm, 10KGS (440 pcs) of each carton
Lead Time︰ About 3~5 Days After Received Payment
SKU︰ 1000
Standards Certificate︰ ISO 9001,ISO 14001,UL,SGS,REACH168

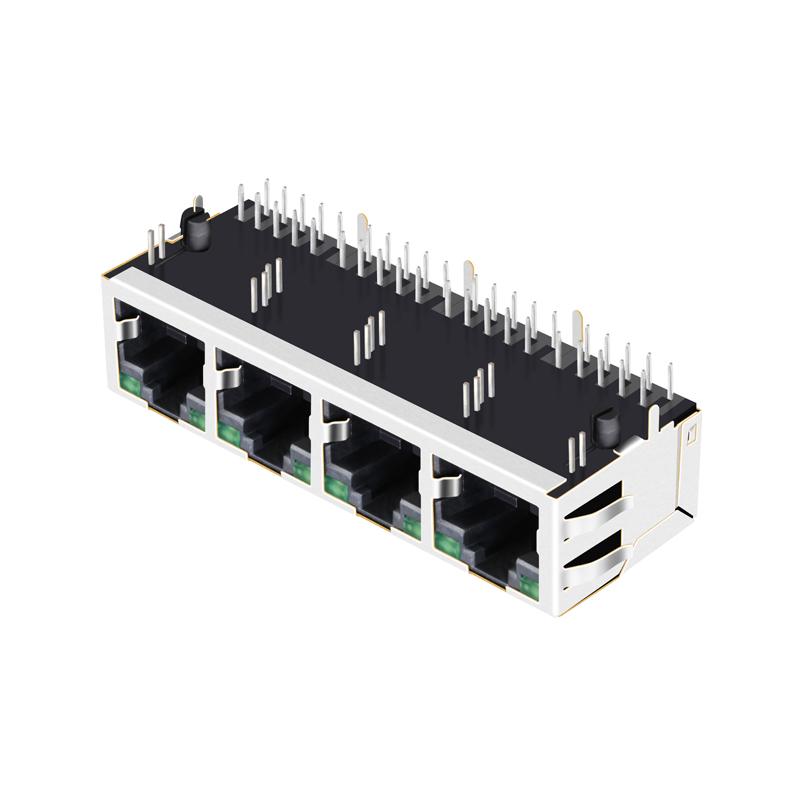

Product Image

XFG1-IB1OOJM-CLxu4MS | 1X4 RJ45 Connectors with 1000 Base-T Integrated MagneticsXFG1-IB1OOJM-CLxu4MS | 1X4 RJ45 Connectors with 1000 Base-T Integrated Magnetics

XFG1-IB1OOJM-CLxu4MS | 1X4 RJ45 Connectors with 1000 Base-T Integrated MagneticsXFG1-IB1OOJM-CLxu4MS | 1X4 RJ45 Connectors with 1000 Base-T Integrated Magnetics
