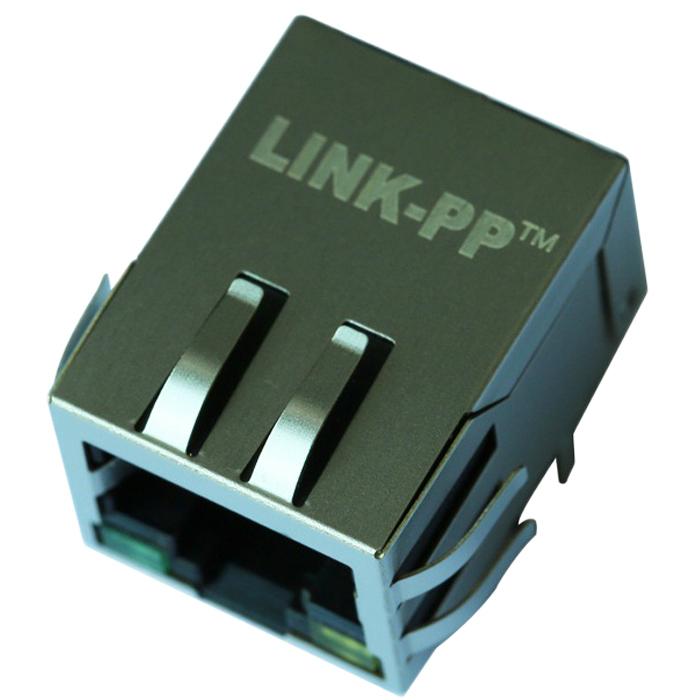

RB1-1Q9BAK1A | Single Port Amp RJ45 Cat6 Modular Jack

Model No.︰

RB1-1Q9BAK1A

Brand Name︰

LINK-PP

Country of Origin︰

China

Unit Price︰

-

Minimum Order︰

100 pc

Share on:

Product Description

http://www.link-pp.comRB1-1Q9BAK1A | Single Port Amp RJ45 Cat6 Modular Jack---LINK-PP Is The Preferred Supplier of Intel and TI

RB1-1Q9BAK1A | Single Port RJ45 Connector with Integrated Magnetics With Leds

RB1-1Q9BAK1A | Single Port Amp RJ45 Cat6 Modular Jack
UDE Part Number RB1-1Q9BAK1A
LINK-PP Part Number LPJG0803A27NL
Application-Lan ETHERNET(NoN PoE)
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port 12
Diodes NO DIODES
LED Option GREEN/GREEN-ORANGE
Latch TAB DOWN
Number of Ports 1X1
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Package Height (Inches) 0.528
Package Height (mm) 13.40
Package Length (Inches) 0.839
Package Length (mm) 21.30
Package Width (Inches) 0.626
Package Width (mm) 15.90
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs WITH
Speed 1000 BASE-T
Temperature 0 TO + 70℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT

RB1-1Q9BAK1A | Single Port RJ45 Connector with Integrated Magnetics With Leds

● LINK-PP Is The Preferred Supplier OfTI Samsung Siemens…

Welcome To Visit The TI Website:www.ti.com,You Will Look At Our Logo “LINK-PP” On

BeagleBone Board

RB1-1Q9BAK1A | Single Port RJ45 Connector with Integrated Magnetics With Leds

RB1-1Q9BAK1A | Single Port RJ45 Connector with Integrated Magnetics With LedsRB1-1Q9BAK1A | Single Port RJ45 Connector with Integrated Magnetics With Leds



Why Choose Us

World’s Leader Supplier Of Integrated RJ45 Connector,Discrete Magnetic Transformers And

Optical Transceiver Modules

Professional Certification

•ISO 9001:2008

•UL Certification

•Reach Cetitifaction

•RoHS Compliance

•Active Environmental Policy

100% Guarantee Qualtiy

•Manufactured Under Strict Controls.

•100% Tested (Not Just Batch Tested)

•LINK-PP Is OEM Of TE (Tyco) For 10 Years

•Successful Customer:Texas Instruments  Samsung Cisco Siemens And Intel…

•LINK-PP Is The Preferred Supplier Of TI (Texas Instruments)

•Quality Guarantee:6 Years

Competitive Price And Service

•More Competitive Price Than Pulse Tyco Halo And Amphenol

•Delivery Time:2-3 Weeks After Orders

•Free Samples Are Available

•Provide New Design For Customer Requirements

•90% Off Shipping Cost By DHL UPS DEDEX Or TNT

LINK-PP Corporate Policy

•The Corporate Goal Is To Achieve The Highest Level Of Customer Satisfaction

   Through Continuous Improvements In Quality, Delivery And Service

• LINK-PP Is Committed To And Expects Quality Performance From Every Employee

• The Company Standard Is Defect-Free Products And Services

RB1-1Q9BAK1A | Single Port RJ45 Connector with Integrated Magnetics With Leds



Payment Terms︰ TT/LC/DP/DA/Paypal/Western Union/MoneyGram
Packing︰ 60 pcs in 1 tray,22 tray in 1 carton, which is 37*30*30 cm, 10 KGS (1320 pcs) of each carton
Lead Time︰ About 3~5 Days After Received Payment
SKU︰ 1000
Standards Certificate︰ ISO 9001,ISO 14001,UL,SGS,REACH168

Product Image

RB1-1Q9BAK1A  | Single Port Amp RJ45 Cat6 Modular JackRB1-1Q9BAK1A | Single Port Amp RJ45 Cat6 Modular Jack

RB1-1Q9BAK1A  | Single Port Amp RJ45 Cat6 Modular JackRB1-1Q9BAK1A | Single Port Amp RJ45 Cat6 Modular Jack
