RM4-104ADV1F 2X4 RJ45 Connector with 10/100 Base-T Integrated Magnetics
  • RM4-104ADV1F 2X4 RJ45 Connector with 10/100 Base-T Integrated Magnetics
  • RM4-104ADV1F 2X4 RJ45 Connector with 10/100 Base-T Integrated Magnetics

RM4-104ADV1F 2X4 RJ45 Connector with 10/100 Base-T Integrated Magnetics

Model No.︰

RM4-104ADV1F

Brand Name︰

LINK-PP

Country of Origin︰

China

Unit Price︰

-

Minimum Order︰

100 pc

Share on:

Product Description

RM4-104ADV1F 2X4 RJ45 Connector with 10/100 Base-T Integrated Magnetics

RM4-104ADV1F 2X4 RJ45 Connector with 10/100 Base-T Integrated Magnetics

RM4-104ADV1F 2X4 RJ45 Connector with 10/100 Base-T Integrated Magnetics
UDE Part Number RM4-104ADV1F
LINK-PP Part Number LPJ4708CNL
Application-Lan ETHERNET(NoN PoE)
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port 4
Diodes NO DIODES
LED Option WITHOUT LEDS
Latch TAB UP/TAB DOWN
Number of Ports 2X4
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Package Height (Inches) 1.015
Package Height (mm) 25.79
Package Length (Inches) 1.116
Package Length (mm) 28.35
Package Width (Inches) 2.330
Package Width (mm) 59.18
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs WITH
Speed 10/100 BASE-T
Temperature 0 TO + 70℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT

RM4-104ADV1F 2X4 RJ45 Connector with 10/100 Base-T Integrated Magnetics

● LINK-PP Is The Preferred Supplier OfTI Samsung Siemens…

Welcome To Visit The TI Website:www.ti.com,You Will Look At Our Logo “LINK-PP” On

BeagleBone Board

RM4-104ADV1F 2X4 RJ45 Connector with 10/100 Base-T Integrated Magnetics

Why Choose Us

World’s Leader Supplier Of Integrated RJ45 Connector,Discrete Magnetic Transformers And

Optical Transceiver Modules

Professional Certification

•ISO 9001:2008

•UL Certification

•Reach Cetitifaction

•RoHS Compliance

•Active Environmental Policy

100% Guarantee Qualtiy

•Manufactured Under Strict Controls.

•100% Tested (Not Just Batch Tested)

•LINK-PP Is OEM Of TE (Tyco) For 10 Years

•Successful Customer:Texas Instruments  Samsung Cisco Siemens And Intel…

•LINK-PP Is The Preferred Supplier Of TI (Texas Instruments)

•Quality Guarantee:6 Years

Competitive Price And Service

•More Competitive Price Than Pulse Tyco Halo And Amphenol

•Delivery Time:2-3 Weeks After Orders

•Free Samples Are Available

•Provide New Design For Customer Requirements

•90% Off Shipping Cost By DHL UPS DEDEX Or TNT

LINK-PP Corporate Policy

•The Corporate Goal Is To Achieve The Highest Level Of Customer Satisfaction

   Through Continuous Improvements In Quality, Delivery And Service

• LINK-PP Is Committed To And Expects Quality Performance From Every Employee

• The Company Standard Is Defect-Free Products And Services

RM4-104ADV1F 2X4 RJ45 Connector with 10/100 Base-T Integrated Magnetics



Payment Terms︰ TT/LC/DP/DA/Paypal/Western Union/MoneyGram
Packing︰ 20 pcs in 1 tray,22 trays in 1 carton, which is 37*30*30 cm, 10KGS (440 pcs) of each carton
Lead Time︰ About 5~7 Days After Received Payment
SKU︰ 1000
Standards Certificate︰ ISO 9001,ISO 14001,UL,SGS,REACH168

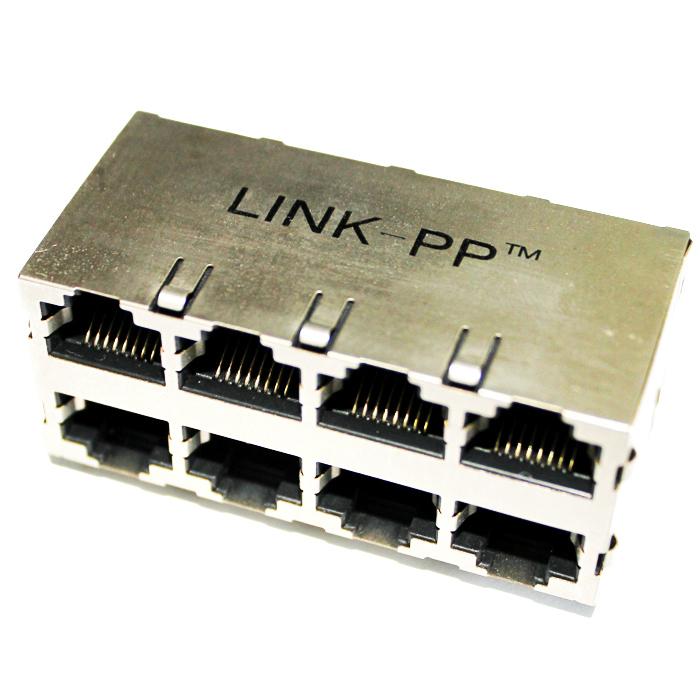

Product Image

RM4-104ADV1F 2X4 RJ45 Connector with 10/100 Base-T Integrated MagneticsRM4-104ADV1F 2X4 RJ45 Connector with 10/100 Base-T Integrated Magnetics

RM4-104ADV1F 2X4 RJ45 Connector with 10/100 Base-T Integrated MagneticsRM4-104ADV1F 2X4 RJ45 Connector with 10/100 Base-T Integrated Magnetics
