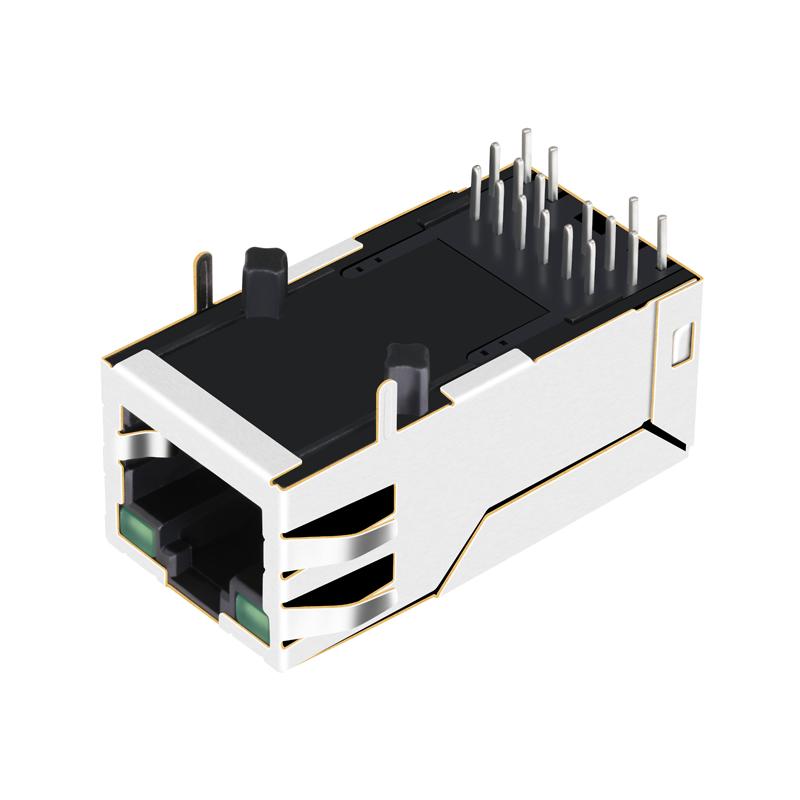

JK0-0114NL Ethernet RJ45 Connector With Transformer

JK0-0114NL Ethernet RJ45 Connector With Transformer
  • JK0-0114NL Ethernet RJ45 Connector With Transformer
  • JK0-0114NL Ethernet RJ45 Connector With Transformer
Model No.︰JK0-0114NL
Brand Name︰LINK-PP
Country of Origin︰China
Unit Price︰-
Minimum Order︰100 pc
Share on:

 Total 551 Related Items
Prev413414415416417Next

Product Description

JK0-0114NL Ethernet RJ45 Connector With Transformer

1. PC Mainboard, SDH, PDH, IP Phone, xDSL modem
2. Application: support 10/100 Base-T
3. Through Hole type
4. Minimum 1500Vrms

JK0-0114NL Ethernet RJ45 Connector With Transformer

Description:

1. Product Type Features:
1) Product Type Connector
2) Jack Type RJ45
3) Profile Standard
4) PCB Mounting Orientation Through Hole
2. Mechanical Attachment:
1) Jack Configuration 1X1
3. Electrical Characteristics:
1) Shielded Yes
4. Termination Related Features:
1) EMI Finger Yes
2) Termination Method Solder
5. Body Related Features:
1) Port Configuration Single port
2) EMI Fingers -Top and Sides  With/Without
3) Latch Orientation Standard - Latch Down
4) PCB Tail Length 3.50±0.50mm
6. Contact Related Features:
1) Preloaded Yes
2) Contact Termination Type  Through Hole
7. Housing Related Features:
1) Connector Style Jack
8. Industry Standards:
1) RoHS/ELV Compliance RoHS compliant, ELV compliant
2) Lead Free Solder Processes  Wave solder capable to 265°C
3) RoHS/ELV Compliance History  Always was RoHS compliant
9. Identification Marking:
1) Left LED Color Green or Yellow
2) Right LED Color  Green or Yellow
10. Conditions for Usage:
1) Applies To Printed Circuit Board
2) Environmental Conditions Office / Premises
3) Operating Temperature (°C )   0 - 70/-40 - +85
11. Configuration Related Features
1) Magnetic Circuit 3D15
2) Status Indicator Led
3) Decoupling Capacitor With/Without
4) Rear PCB Ground Tab With/Without
5) Signal Lead Quantity 8
12. Operation/Application:
1) Application 10/100 Base-T

JK0-0114NL Ethernet RJ45 Connector With Transformer Applications:
Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem

JK0-0114NL Ethernet RJ45 Connector With Transformer Competitive Advantage:
16 years production experience,

2600 staff,

100% test

Flexible delivery time

As a specialized manufacturer of JK0-0114NL Ethernet RJ45 Connector With Transformer and the best supplier of "Texas Instruments",We can do many parts of RJ45 connector,  cross Tyco, Pulse, Belfuse ,the parts as follows:

RTC-14DFGJ1D RTC-134AAK1A RTA-365ATR1F RTB-14GBCC1A MIC24010-5104
RTA-164AAK1A RTA-164ABB1A RTA-194BBA1A RTB-10DB5H1A MIC24010-5101
RB1-125BAG1A 24-01017HU23-1 RT7-195AAM1F RT7-1B3A1K1F MIC13011-0111
RB1-125BAK1A RB1-30AA8K1A RB1-30JA8K1B RB1-105B1A1A MIC13011-5113
RS3-21001D1A RB1-2S5BAK1A RB4-10HFAG1F RB1-125BBB1A MIC66611-5171
RN2-1440CT1F RM9-16AAHQ1F RM7-1SAA9V1F RM3-138A9V1F MIC66011-5171
RU1-141A1Z1F W1-5255-B12 RB4-11GF9V2F RN6-1640RV1F MIC66211-5171
RU5-161A5YAF RU2-1150B633 RU1-541A1Z1F RU1-131A9WDF MIC66210-5171
94910-008MLF RUC-161A9RJF RU5-161A5FGF RU2-20501D13 RUB-230A100A
94911-508MLF 92266-001LF 92266-003LF 94910-004MLF RC1-1Q00000D
RTA-364A1R1A RV1-12108K1A RV1-10108K1A RC2-1000000F RC1-1000000D
MIC24010-0107 MIC24011-0101 MIC24011-0104 MIC24011-5108 MIC24012-5101
MIC24012-5204 MIC24012-5117 MIC2401D-5217 MIC24013-0102 MIC24013-5204
MIC24013-5104 MIC24018-5101 MIC24019-0101 MIC24111-0101 MIC24112-0101
MIC24111-0108 MIC2411C-6131 MIC2411D-0117 MIC24211-5101 MIC24212-5104
MIC24213-5101 MIC24213-5204 MIC24210-0101 MIC24210-0104 MIC24311-0101
MIC24313-0101 7499010214 MIC24310-5101 MIC24412-0128 MIC24F11-0101
7499012000 MIC24020-5101 MIC24120-5101 MIC24121-5101 MIC24122-5101
MIC2412A-5108 MIC25010-5110 MIC25010-5101 MIC25013-5110 MIC25013-5223
MIC2501A-5110 MIC25113-0141 MIC2511C-6131 MIC25210-0101 MIC25211-5112
MIC25212-0110 MIC25213-5210 MIC25310-5110 MIC25311-0110 MIC24121-5301
MIC24121-5308 MIC24121-5408 MIC25020-5110 MIC26023-5134 MIC25U13-5115
MIC24U13-5115 MIC24U1C-6131 MIC38010-5265 MIC38011-5265 7499111212
7499111213 MIC38013-0155 MIC3801J-5169 MIC3811B-0152 MIC31112-0152
MIC31U1A-5153 MIC24810-0104 MIC24811-0104 7499021220 MIC24510-0101
MIC24712-0108 MIC24713-0101
Payment Terms︰TT/LC/DP/DA/Paypal/Western Union/MoneyGram
Packing︰60 pcs in 1 tray,20tray in 1 carton, which is 37*30*30 cm, 11KGS (1320pcs) of each carton
Lead Time︰About 5~7 Days After Received Payment
SKU︰1000
Standards Certificate︰ ISO 9001,ISO 14001,UL,SGS,REACH168
Product Image

JK0-0114NL Ethernet RJ45 Connector With Transformer
JK0-0114NL Ethernet RJ45 Connector With Transformer

JK0-0114NL Ethernet RJ45 Connector With Transformer
JK0-0114NL Ethernet RJ45 Connector With Transformer
