GS5014LF Lan Pulse Transformer Trenntrafo Transformateur

GS5014LF Lan Pulse Transformer Trenntrafo Transformateur
  • GS5014LF Lan Pulse Transformer Trenntrafo Transformateur
  • GS5014LF Lan Pulse Transformer Trenntrafo Transformateur
Model No.︰GS5014LF
Brand Name︰LINK-PP
Country of Origin︰China
Unit Price︰-
Minimum Order︰100 pc
Share on:

 Total 137 Related Items
Prev107108109110111Next

Product Description

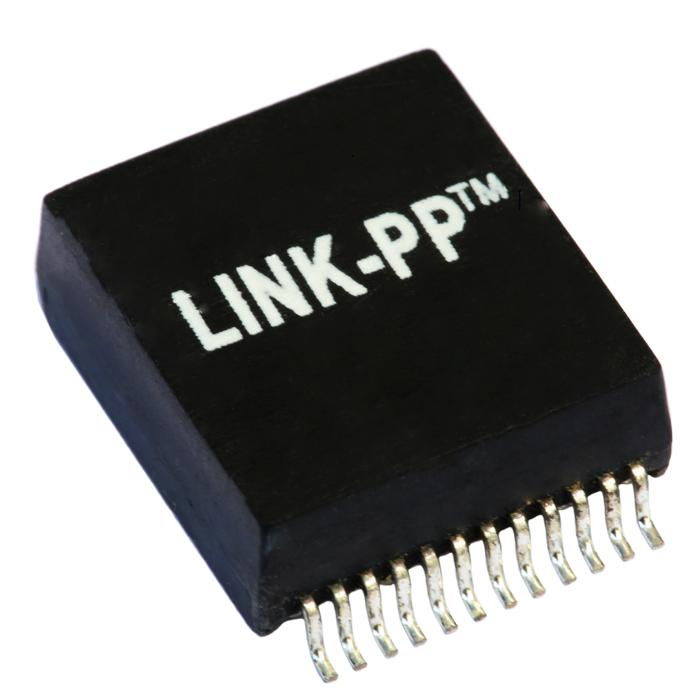

GS5014LF Lan Pulse Transformer Trenntrafo Transformateur  Description


1.Pin number:12 or 16
2.Speed: 100BASE-TX
3.Usage: Pulse , Electronic
4.Coil Structure:Toroidal



12 / 16pins LAN Pulse Toroidal Transformer For Pulse , Electronic

H1102NL,H5004NL,H5007NL,H1164NL,H1188NL,H5008NL,H2009NL,H1198NL,
H6080NL,H5014NL,H5012NL



GS5014LF Lan Pulse Transformer Trenntrafo Transformateur Description:

Application LAN ETHERNET(PoE&NON PoE)
AutomDX YES
Comment RoHS Compliant LPXXXXNL
Configuration RX T,C
Configuration TX T,C
Construction TRANSFER MOLD
Cores Per Port 4
Number of Ports QUAD
PCB NO PCB
Package SMT
Package Height (Inches) 0.225 or other
Package Height (mm) 5.715 or other
Package Length (Inches) 1.12 or other
Package Length (mm) 28.448 or other
Package Width (Inches) 0.63 or other
Package Width (mm) 16.002 or other
RoHS Compliant YES-RoHS-6
Speed 10/100/1000BASE-TX
Temperature 0 TO 70/-40 To +85
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT
Main P/N LP1102NL, etc



Electrical Specifications(25):

1. Turns Ratio50KHz, 0.5V

      Chip side: Line side=1CT: 1CT+_2%

2. Inductance(Ls)100KHz, 0.1V, 12mA DC Bias:

Chip side: 350uH Min

3. Insertion Loss1-100MHz: -1.4dB Max

4. Return Loss1-30MHz: -16dB Min

            40MHz: -14.4dB Min

            50MHz: -13.1dB Min

            60-80MHz: -12dB Min

            100MHz: -10dB Min

5. Differential to Common Mode Rejection:

            30MHz: -45dB Min

            60MHz: -40dB Min

            100MHz: -35dB Min

6. Crosstalk30MHz: -40dB Min

            60MHz: -35dB Min

            100MHz: -30dB Min

7. Hi-Pot: 1500Vrms Min

GS5014LF Lan Pulse Transformer Trenntrafo Transformateur Applications:

Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem

GS5014LF Lan Pulse Transformer Trenntrafo Transformateur Competitive Advantage:

16 years production experience,

2600 staff,

100% test

Flexible delivery time

As a specialized manufacturer of GS5014LF Lan Pulse Transformer Trenntrafo Transformateurand the best supplier of "Texas Instruments",We can do many parts of RJ45 connector,  cross Tyco, Pulse, Belfuse ,the parts as follows:

TG04-TDK1N1 TG110-E050N5RL XFGIB100T-COMBO1-4MS RT7-103ABP1A
TG75-1406NRL TG62-1006N1RL XFGIC100POL RTH-103AAH3A
TGS110-MT1NCRL TG74-1505NZ XFATM2-COMBO1-4S RTE-113BAH3A
TG1G-RP44NZRL TG1G-S002NZ XFOO13Q2B RU1-A31AFB1A
TG1G-S202NV6 T1006 XFATM6N-CVxu1-2M H1197NL
TG1G-E001NY T1068 XFVOIP5E-CLxu2-4MS H1012NL
JWO-0006 TX1193 XFATM6T-CTGZxu1-4Ms H1260
PE-65507 TX1470NL ON316655 HX1260NL
T1218NL PE-67540 XF35066B H1234
T1022 PE-68678 XFGIGH-SIKVDxu2-2 HX2019
JWO-0009NL PE-68861 XFOO135-32S H5008NLT
JWO-0013 PE-68810 KA-0802-10N HX5084NL
JYO-0016NL PE-68820 XFGIB100DPOL-STACK12-4 23Z106SMNLT
PE-53933SNL PE-65812 XFATM2E-CTGxu2-4M 23Z356SMT
JWO-0006NL PE-65612 XFGIGBQ-COMBO1-4MS E2023NL
TX1344NL PE-68628 XFVOIP5QS-CTxu1-2L EX2024NLT
JKO-0004NL PE-68515 XFGIB1OO-CLxu2-4MS T1142NL
TWO-0006NL J0-0066 XFATM6Y-CLTZxu1-2MS T1146NLT
PE-69011 J0006D21NL XFATM2W-COMBO1-4MS T1065NLT
T3001 J1006F21PNL XFATM6-COMBO1-4S T1021NLT
A6801NL J1011F21PNL XFOO13Q23 T1006
H2260 J1011F32NL J2042H3ANL T1068
JWO-0013NL JK0654219NL BX1196NL TX1193
JCO-0019NL JP06821UNL H2014NL TX1470NL
TX1475NL TM11RD-5TANA-A-BB PE-68810 PE-67540
HX6096NL JG0-0024 PE-68820 PE-68678
      PE-68861
Payment Terms︰TT/LC/DP/DA/Paypal/Western Union/MoneyGram
Packing︰600PCS/Reel, 6Reels/Carton, Total 3600pcs,Weight Is About 8KG,, Size: 33*33*30cm
Lead Time︰About 5~7 Days After Received Payment
SKU︰1000
Standards Certificate︰ISO 9001,ISO 14001,UL,SGS,REACH168
