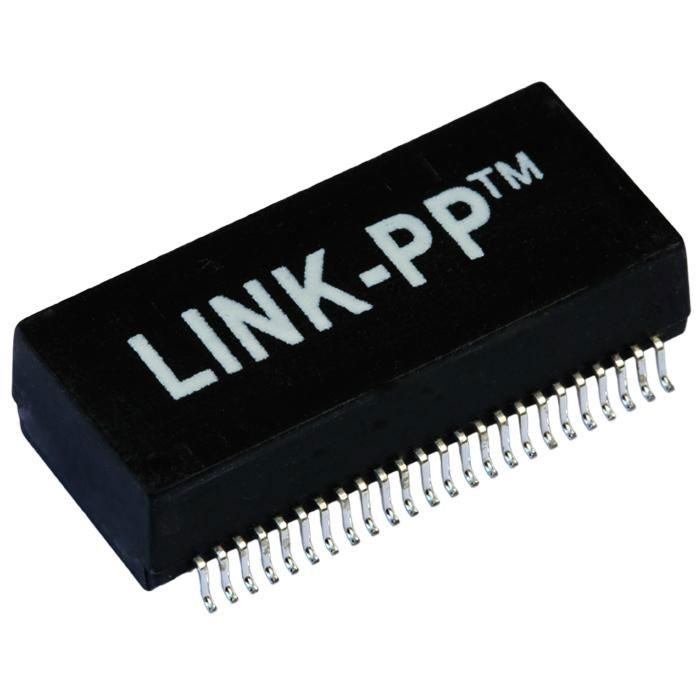

H5004NL LAN Pulse Transformer Modules Filtres

H5004NL LAN Pulse Transformer Modules Filtres
  • H5004NL LAN Pulse Transformer Modules Filtres
  • H5004NL LAN Pulse Transformer Modules Filtres
Model No.︰H5004NL
Brand Name︰LINK-PP
Country of Origin︰China
Unit Price︰-
Minimum Order︰100 pc
Share on:

 Total 137 Related Items
Prev120121122123124Next

Product Description

H5004NL LAN Pulse Transformer Transformer Modules

Detailed Product Description

1.Pin number:12 or 16

2.Speed: 100BASE-TX

3.Usage: Pulse , Electronic

4.Coil Structure:Toroidal

12 / 16pins LAN Pulse Toroidal Transformer For Pulse , Electronic

H1102NL,H5004NL,H5007NL,H1164NL,H1188NL,H5008NL,H2009NL,H1198NL,
H6080NL,H5014NL,H5012NL



H5004NL LAN Pulse Transformer Transformer Modules Description:

Application LAN ETHERNET(PoE&NON PoE)
AutomDX YES
Comment RoHS Compliant LPXXXXNL
Configuration RX T,C
Configuration TX T,C
Construction TRANSFER MOLD
Cores Per Port 4
Number of Ports QUAD
PCB NO PCB
Package SMT
Package Height (Inches) 0.225 or other
Package Height (mm) 5.715 or other
Package Length (Inches) 1.12 or other
Package Length (mm) 28.448 or other
Package Width (Inches) 0.63 or other
Package Width (mm) 16.002 or other
RoHS Compliant YES-RoHS-6
Speed 10/100/1000BASE-TX
Temperature 0 TO 70/-40 To +85
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT
Main P/N LP1102NL, etc

Electrical Specifications(25):

1. Turns Ratio50KHz, 0.5V

      Chip side: Line side=1CT: 1CT+_2%

2. Inductance(Ls)100KHz, 0.1V, 12mA DC Bias:

Chip side: 350uH Min

3. Insertion Loss1-100MHz: -1.4dB Max

4. Return Loss1-30MHz: -16dB Min

            40MHz: -14.4dB Min

            50MHz: -13.1dB Min

            60-80MHz: -12dB Min

            100MHz: -10dB Min

5. Differential to Common Mode Rejection:

            30MHz: -45dB Min

            60MHz: -40dB Min

            100MHz: -35dB Min

6. Crosstalk30MHz: -40dB Min

            60MHz: -35dB Min

            100MHz: -30dB Min

7. Hi-Pot: 1500Vrms Min

H5004NL LAN Pulse Transformer Transformer Modules Applications:

Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem

H5004NL LAN Pulse Transformer Transformer Modules Competitive Advantage:

16 years production experience,

2600 staff,

100% test

Flexible delivery time

As a specialized manufacturer of H5004NL LAN Pulse Transformer Transformer Modulesthe best supplier of "Texas Instruments",We can do many parts of RJ45 connector,  cross Tyco,Pulse,Belfuse,the parts as follows:

SM51589L LG2P109N LF
G24102MKG G2PM109N
749020010 DG48201G
24HSS1041-2 HF H5111NL
24HSS1041-2  20F001NG
24SH10410 HF FB2022
H5004NL FD22-101G
H5004NL FB2022LF
G2414SG FD22-101G
HX5062NL and PT61020 P -67540
XFGIB100 S553-5999-F2
000-7093-37R-LF1 P -68515
749020011 TLA-3T106LF-T
H5007NL P -68810
TG1G-S002NZRL P -68820
TG1G-S002NZ LFE9420
H5007NL 11FB-17NL
TG1G-S002NZ LF-H17S-C
LFE9207A-JU MD0817E
GS5008 HF PH162479G
S558-5999-T3 LF-H49S-C
H5008NLT HX5062NL
H2009NL H5062NL
H2009NL  H5084NL
H24201SI HX5084NL
LV2001   15FB-22CNL
IH-033 H6062NL
TG1G-S202NV6 HST-24030SXR
TG1G-S202NV6 LFE9245A
XTFZ-M3076-C S558-5500-68
XTFZ-DGD4802HB3 XFGIC100POL
TG1G-S202NV6* S558-5500-68
G48503MN XFGIC100POL
G4802CG APL-060B
FA0185 LFE9139-R-BC
GS5014 LF XTFZ-DHD2401CC1-JU
GS5014  H7201DG
GS5014LF H6080NL
H5014NL H6101NL
GS5014 LF  HX6096NL
H5014 HX6096NL
TG1G-E001NY H6096NL
TG1G-001NY ML1161
H5009 G18101DQ
H2017 VP2006A
H5019NL TG111-HRPE10NYRL
H5020NL TG111-HRP10NYRL
S558-5500-16 TG111-HRP10NYRL
GST5009CLF TG111-HRPE10NYRL
30F-56NL
Payment Terms︰TT/LC/DP/DA/Paypal/Western Union/MoneyGram
Packing︰600PCS/Reel, 6Reel/Carton, Total 3600pcs,Weight Is About 8KG,, Size: 33*33*30cm
Lead Time︰About 5~7 Days After Received Payment
SKU︰1000
Standards Certificate︰ISO 9001,ISO 14001,UL,SGS,REACH168
Product Image

H5004NL LAN Pulse Transformer Modules Filtres
H5004NL LAN Pulse Transformer Modules Filtres

H5004NL LAN Pulse Transformer Modules Filtres
H5004NL LAN Pulse Transformer Modules Filtres
