LU1S041CX-34 LF amp RJ45 Connector Cat6 With Magnetics For PCB

LU1S041CX-34 LF amp RJ45 Connector Cat6 With Magnetics For PCB

Model No.︰LU1S041CX-34 LF

Brand Name︰LINK-PP

Country of Origin︰China

Unit Price︰-

Minimum Order︰100 pc

Inquire Now

Product Description

LU1S041CX-34 LF amp RJ45 Connector Cat6 With Magnetics For PCB---LINK-PP Is The Preferred Supplier of TI Intel

LU1S041CX-34 LF RJ45 Modular Jack With Magnetics For Development boards

LU1S041CX-34 LF amp RJ45 Connector Cat6 With Magnetics For PCB
Bothhand Part Number LU1S041CX-34 LF
LINK-PP Part Number LPJ0182BANL
Application-Lan ETHERNET(NoN PoE)
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port 4
Diodes NO DIODES
LED Option YELLOW/GREEN
Latch TAB DOWN
Number of Ports 1X1
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Package Height (Inches) 0.531
Package Height (mm) 13.50
Package Length (Inches) 0.839
Package Length (mm) 21.30
Package Width (Inches) 0.626
Package Width (mm) 15.90
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs WITHOUT
Speed 10/100 BASE-T
Temperature 0 TO 70℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT

LU1S041CX-34 LF RJ45 Modular Jack With Magnetics For Development boards

● LINK-PP Is The Preferred Supplier OfTI Samsung Siemens…

Welcome To Visit The TI Website:www.ti.com,You Will Look At Our Logo “LINK-PP” On

BeagleBone Board

LU1S041CX-34 LF RJ45 Modular Jack With Magnetics For Development boards

Why Choose Us

World’s Leader Supplier Of Integrated RJ45 Connector,Discrete Magnetic Transformers And

Optical Transceiver Modules

Professional Certification

•ISO 9001:2008

•UL Certification

•Reach Cetitifaction

•RoHS Compliance

•Active Environmental Policy

100% Guarantee Qualtiy

•Manufactured Under Strict Controls.

•100% Tested (Not Just Batch Tested)

•LINK-PP Is OEM Of TE (Tyco) For 10 Years

•Successful Customer:Texas Instruments  Samsung Cisco Siemens And Intel…

•LINK-PP Is The Preferred Supplier Of TI (Texas Instruments)

•Quality Guarantee:6 Years

Competitive Price And Service

•More Competitive Price Than Pulse Tyco Halo And Amphenol

•Delivery Time:2-3 Weeks After Orders

•Free Samples Are Available

•Provide New Design For Customer Requirements

•90% Off Shipping Cost By DHL UPS DEDEX Or TNT

LINK-PP Corporate Policy

•The Corporate Goal Is To Achieve The Highest Level Of Customer Satisfaction

   Through Continuous Improvements In Quality, Delivery And Service

• LINK-PP Is Committed To And Expects Quality Performance From Every Employee

• The Company Standard Is Defect-Free Products And Services

LU1S041CX-34 LF RJ45 Modular Jack With Magnetics For Development boards

Payment Terms︰ TT/LC/DP/DA/Paypal/Western Union/MoneyGram

Packing︰ 60 pcs in 1 tray,20tray in 1 carton, which is 37*30*30 cm, 11KGS (1320pcs) of each carton

Lead Time︰ About 5~7 Days After Received Payment

SKU︰ 800

Standards Certificate︰ ISO 9001,ISO 14001,UL,SGS,REACH168

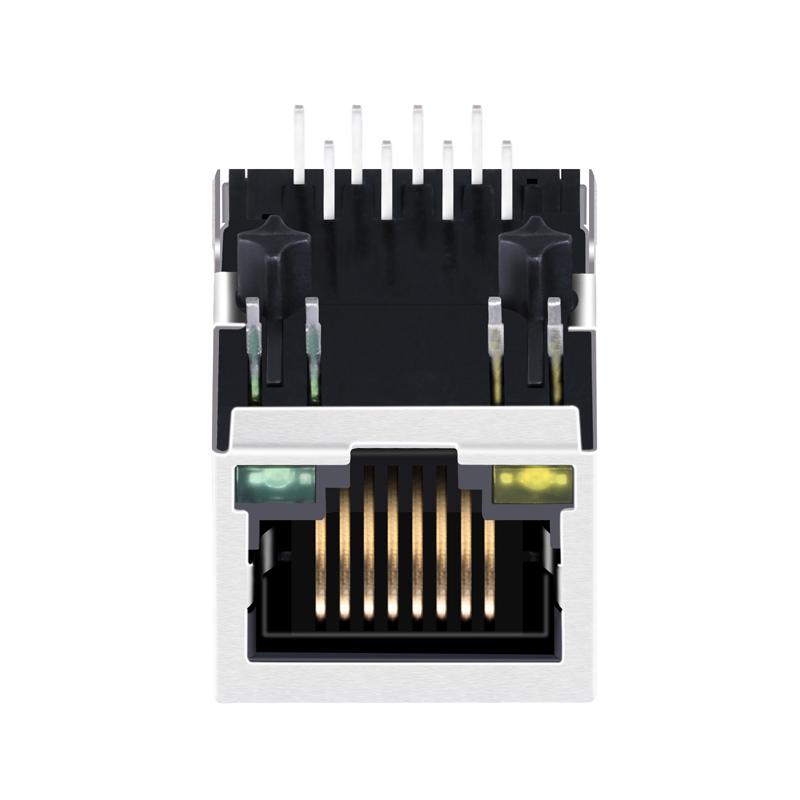

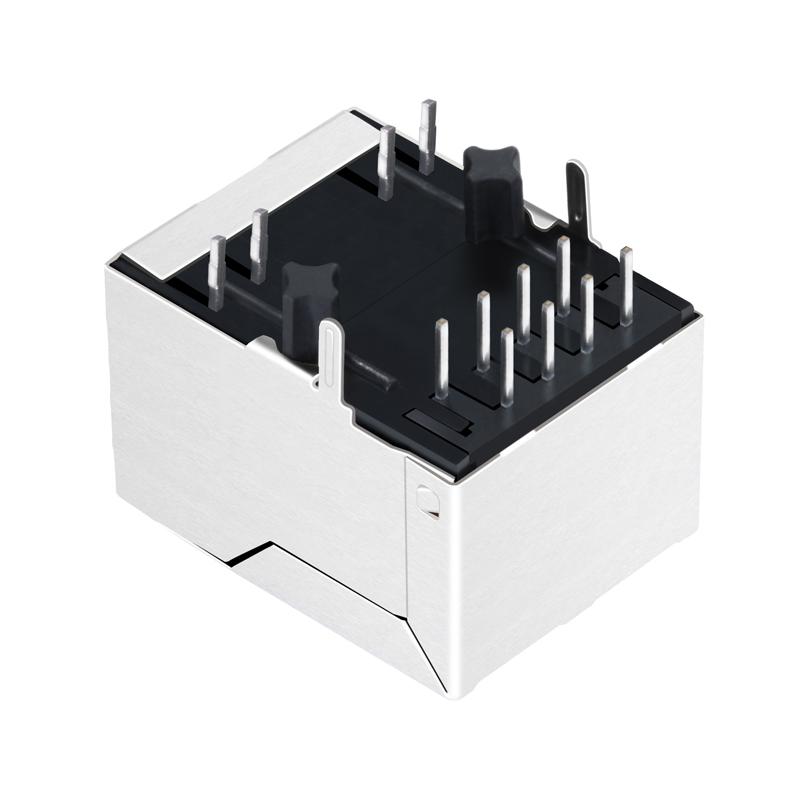

Product Image
