08211X1T36-F RJ45 connector lan cable bnc connector for Wireless Router

08211X1T36-F RJ45 connector lan cable bnc connector for Wireless Router

Model No.︰08211X1T36-F

Brand Name︰LINK-PP

Country of Origin︰China

Unit Price︰-

Minimum Order︰100 pc

Inquire Now

Product Description

08211X1T36-F RJ45 connector lan cable bnc connector for Wireless Router

1.PC Mainboard, SDH, PDH, IP Phone, xDSL modem
2.Application: support 10/100/1000 Base-T
3.Through Hole type
4. Minimum 1500Vrms

08211X1T36-F RJ45 connector lan cable bnc connector for Wireless Router

Description:

1X1 GIgabit RJ45 MODULAR JACK, Shielded RJ45

1. Product Type Features:
1) Product Type Connector
2) Jack Type RJ45
3) Profile Standard
4) PCB Mounting Orientation Through Hole
2. Mechanical Attachment:
1) Jack Configuration 1X1
3. Electrical Characteristics:
1) Shielded Yes
4. Termination Related Features:
1) EMI Finger Yes
2) Termination Method Solder
5. Body Related Features:
1) Port Configuration Single port
2) EMI Fingers -Top and Sides  With/Without
3) Latch Orientation Standard - Latch Down
4) PCB Tail Length 3.50±0.50mm
6. Contact Related Features:
1) Preloaded Yes
2) Contact Termination Type  Through Hole
7. Housing Related Features:
1) Connector Style Jack
8. Industry Standards:
1) RoHS/ELV Compliance RoHS compliant, ELV compliant
2) Lead Free Solder Processes  Wave solder capable to 265°C
3) RoHS/ELV Compliance History  Always was RoHS compliant
9. Identification Marking:
1) Left LED Color Green or Yellow
2) Right LED Color  Green or Yellow
10. Conditions for Usage:
1) Applies To Printed Circuit Board
2) Environmental Conditions Office / Premises
3) Operating Temperature (°C )   0 - 70/-40 - +85
11. Configuration Related Features
1) Magnetic Circuit 3D15
2) Status Indicator Led
3) Decoupling Capacitor With/Without
4) Rear PCB Ground Tab With/Without
5) Signal Lead Quantity 8
12. Operation/Application:
1) Application 10/100/1000 Base-T


08211X1T36-F RJ45 connector lan cable bnc connector for Wireless Router Applications:

Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem

08211X1T36-F RJ45 connector lan cable bnc connector for Wireless RouterCompetitive Advantage:

16 years production experience,

2600 staff,

100% test

Flexible delivery time

As a specialized manufacturer of 08211X1T36-F RJ45 connector lan cable bnc connector for Wireless Routerthe best supplier of "Texas Instruments",We can do many parts of RJ45 connector,  cross Tyco, Pulse, Belfuse ,the parts as follows:

XMF-9759-8822-130D-TD-LFG
XMF-9759-8824-130D-TS-A
XMF-9759-8824-130D-TD-A
XMF-XARJ-410022ANL
XMF-XARJ-1106ANL
XMF-TRJ0034CNL
XMF-TRJ0172CNL
XMF-YL1B000S2060SNL
XMF-YL1B000S2141SNL
XMF-YL1B000M2141SNL
XMF-US0-29-A22-B12
XMF-01Z-000-D11-010
XMF-9759-8821-230D-TS
XMF04FA-0-D31-1-070
XMF-9759-8821-433B-T1-A
XMF-9759-8821-433B-TS-A
XMF-RJF-0-H93-070
XMF-TRJG0801CNL
XMF-T20-000-032-012
XMF-T20-000-032-014
XMF-RJ31A23CB2S3-88AK
XRJF-01A-0-D2A-010(01)
XRJF-01A-0-D11-01
XRJF-01A-0-D22-010(01)
XRJF-01A-0-D22-020(01)
XRJF-01A-0-D23-010(01)
XRJF-01A-0-D28-010(01)
XRJF-01A-0-D38-010(01)
XRJF-01A-0-DW1-010(01)
XRJF-01A-0-E13-010(01)
XRJF-01A-0-E13-020(01)
XRJF-01A-0-E13-020-C
XRJF-01A-0-D2A-01(01)
XRJF-01J-0-C31-050
XRJF-01J-0-D31-011
XRJF-01J-0-D31-060
XRJF-01J-0-D41-020
XRJF-01J-0-D41-0T0
XRJF-01J-0-D91-010
XRJF-01J-0-E11-010-J
XRJF-01J-0-E11-010
XRJF-01J-0-E13-010
XRJF-01J-0-E13-020-E-1
XRJF-01J-0-E13-020
XRJF-01J-0-DZ5-010
XRJF-01J-0-DZ5-021
XRJF-01J-0-D12-010
XRJF-01J-0-D22-02P
XRJF-01J-0-D22-010
XRJF-01J-0-D12-011
XMF-01Z-000-019-010
XRJF-01A-0-D38-01(01)
XRJF-01A-0-D39-01(01)
XRJF-01A-0-D75-01(01)
XRJF-01A-0-E13-01(01)
XRJF-01A-0-E63-01(01)
XRJF-01A-0-D12-01(01)
XRJF-01A-0-D22-01(01)
XRJF-01A-0-D29-01(01)
XRJF-02J-0-D31-0A0
XRJF-04J-0-D12-0B0(01)
XRJF-04J-0-DE4-020
XRJF-04A-0-D31-034
XRJF-04A-0-D22-0A0(01)
XRJF-04A-0-D22-0B0(01)
XRJF-04A-0-D22-01(01)
XMF-J4B101ZCC
XMF-EF-04A-0-D12-0B0
XRJF-04J-0-D22-0A0
XRJF-04J-0-D22-0B0
XRJF-01A-0-D23-01(01)
XRJF-01J-0-H32-000
XRJF-01J-0-H32-010
XRJF-01J-0-H66-010
XRJF-01J-0-H66-014
XRJF-01J-0-H69-020
XRJF-01J-0-H68-010
XRJF-01A-0-D28-01(01)
XMH-J1B921ZTSA
XMH-J1B912ZFEA
XMH-TRJ16209CNL
XMHA-01-4-DQ2-111-1{0
XMH-TRJ1004ABLN
XMH-01Y-1-DA1-170
XMH-01Y-4-DA1-170
XMH-01Y-4-D12-170
XMH-01Y-5-D12-170
XMH-SCB51-098-DNL
XMH-9770-8613-S3T9-C
XMH-9770-861X-S3L61T9-C
XMH-9770-8611-S3L2T6-C
XMH-9770-8611-S4L6T3-C
XMH-9770-8612-S3LET3-C
XMH-9801-8811-130D-L2T1-C
XMH-9801-8813-140D-L2T7-C
XMH-9808-81013-140D-LFT3-LFG
XMH-XARJ-1079BANL
XMH-XARJ-101222BNL
XMH-XARJ-1033505ANL
XMH-TRJ1514 AENL
XMH-TRJK6064AONL
XMH-TRJ1014AHNL
XMH-TRJ1004AGNL
XMH-TRJ1006BBNL
XMH-TRJ1014AWNL
XMH-TRJ1060AHNL
XMH-TRJ0514CNL
XMH-TRJ1106AANL
XMH-TRJ1514AENL
XMH-TRJ6213BENL
XMH-TRJ6205A42NL
XMH-TRJ17633AFNL
XMH-TRJ2011KONL
XMH-TRJ1138AGNL
XMH-TRJ2011KGNL
XMH-TRJ2011CNL
XMH-TRJ2012KONL
XMH-TRJ2026KONL
XMH-TRJ6011ACNL
XMH-TRJ6011ACNL2
XMH-TRJ6177AENL
XMH-TRJ19201BGCNL
XMH-TRJ1028AHNL
XMH-TRJ1030AWNL
XMH-TRJ1011BBNL
XMH-TRJ1116BLNL
XMH-TS-50005-2-A
XMH-TS-5006-A
XMH-TS-50219
XMH-01D-4-D66-11A

Payment Terms︰ TT/LC/DP/DA/Paypal/Western Union/MoneyGram

Packing︰ 40 pcs in 1 tray,18 tray in 1 carton, which is 37*30*30 cm, 9KGS (720 pcs) of each carton

Lead Time︰ About 5~7 Days After Received Payment

SKU︰ 1000

Standards Certificate︰ ISO 9001,ISO 14001,UL,SGS,REACH168

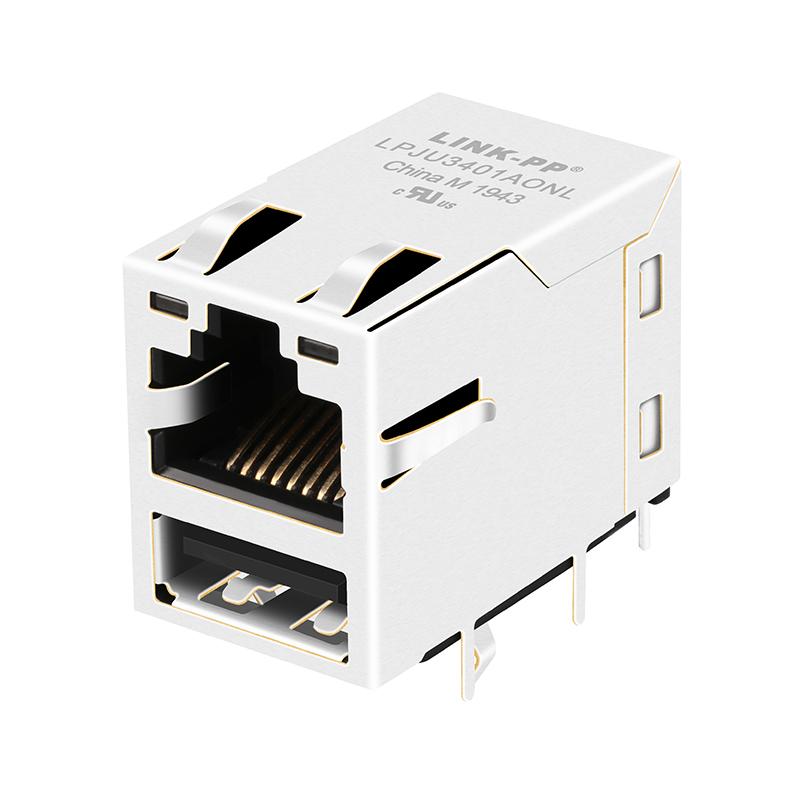

Product Image
