XRJV-01V-4-D12-180 Vertical RJ45 Jacks with 10/100 Base-T Integrated Magnetics

Model No.︰

XRJV-01V-4-D12-

Brand Name︰

LINK-PP

Country of Origin︰

China

Unit Price︰

-

Minimum Order︰

100 pc

Share on:

Product Description

XRJV-01V-4-D12-180 Vertical RJ45 Jacks with 10/100 Base-T Integrated Magnetics

XRJV-01V-4-D12-180 Vertical RJ45 Jacks with 10/100 Base-T Integrated Magnetics

XRJV-01V-4-D12-180 Vertical RJ45 Jacks with 10/100 Base-T Integrated Magnetics
X Multiple Part Number XRJV-01V-4-D12-180
LINK-PP Part Number LPJD0012BHNL
Application-Lan ETHERNET(NoN PoE)
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port 4
Diodes NO DIODES
LED Option GREEN/YELLOW
Latch TAB UP
Number of Ports 1X1
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Package Height (Inches) 0.665
Package Height (mm) 16.90
Package Length (Inches) 0.657
Package Length (mm) 16.70
Package Width (Inches) 0.630
Package Width (mm) 16.00
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs WITH
Speed 10/100 BASE-T
Temperature 0 TO + 70℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT

XRJV-01V-4-D12-180 Vertical RJ45 Jacks with 10/100 Base-T Integrated Magnetics

● LINK-PP Is The Preferred Supplier OfTI Samsung Siemens…

Welcome To Visit The TI Website:www.ti.com,You Will Look At Our Logo “LINK-PP” On

BeagleBone Board

XRJV-01V-4-D12-180 Vertical RJ45 Jacks with 10/100 Base-T Integrated Magnetics

Why Choose Us

World’s Leader Supplier Of Integrated RJ45 Connector,Discrete Magnetic Transformers And



Payment Terms︰ TT/LC/DP/DA/Paypal/Western Union/MoneyGram
Packing︰ 60 pcs in 1 tray,22 trays in 1 carton, which is 37*30*30 cm, 10 KGS (1320 pcs) of each carton
Lead Time︰ About 3~5 Days After Received Payment
SKU︰ 1000
Standards Certificate︰ ISO 9001,ISO 14001,UL,SGS,REACH168

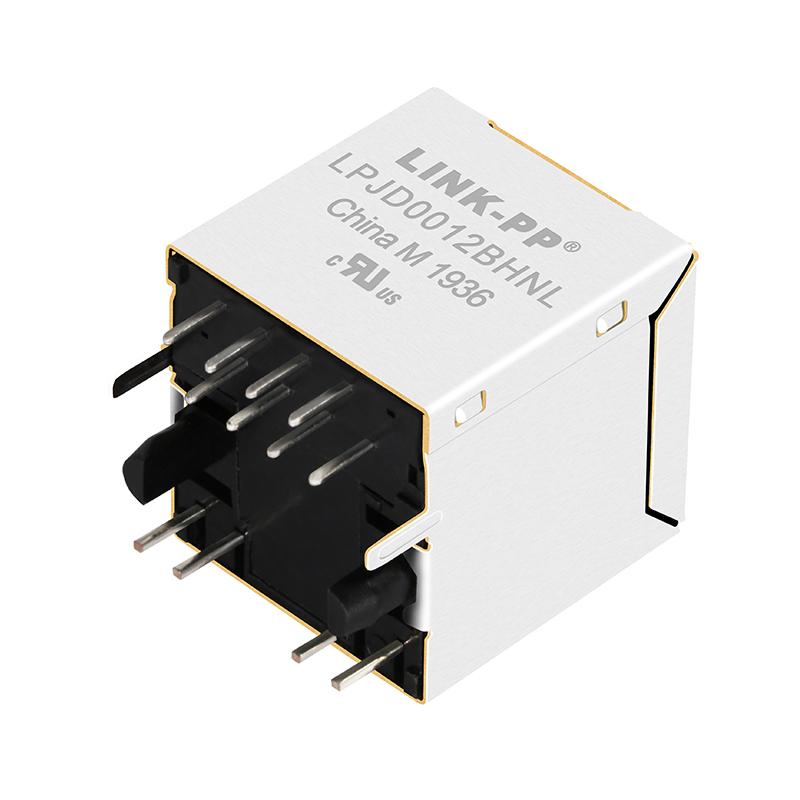

Product Image
