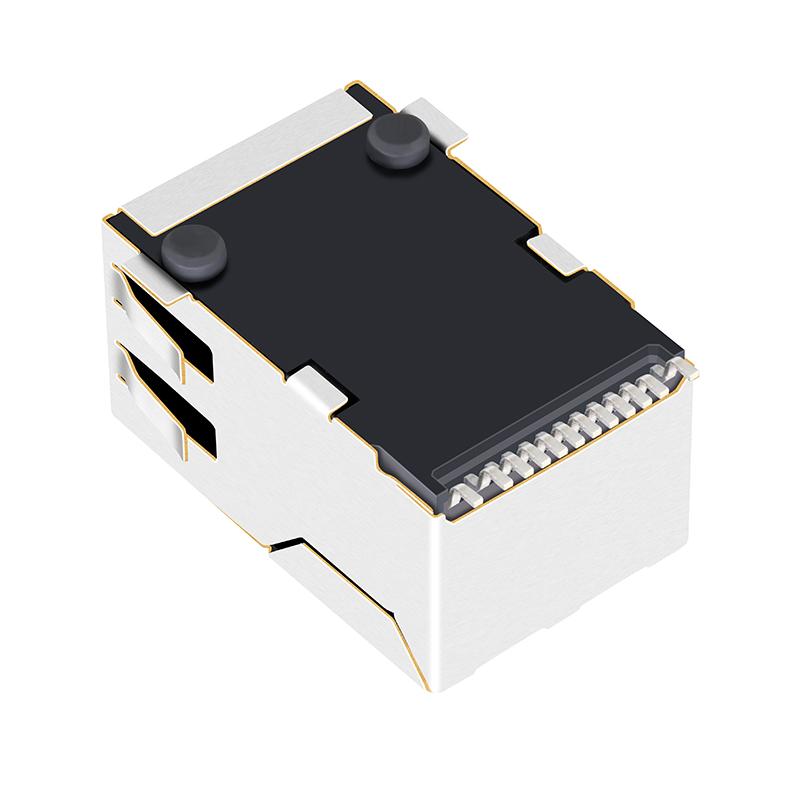

J3026G21DNL ethernet cable cavi ethernet for processor board
1. PC Mainboard, SDH, PDH, IP Phone, xDSL modem
2. Application: support 10/100 Base-T
3. Through Hole type
4. Minimum 1500Vrms
J3026G21DNL ethernet cable cavi ethernet for processor board
| 1. Product Type Features: |
| 1) Product Type |
Connector |
| 2) Jack Type |
RJ45 |
| 3) Profile |
Standard |
| 4) PCB Mounting Orientation |
Through Hole |
| 2. Mechanical Attachment: |
| 1) Jack Configuration |
1X1 |
| 3. Electrical Characteristics: |
| 1) Shielded |
Yes |
| 4. Termination Related Features: |
| 1) EMI Finger |
Yes |
| 2) Termination Method |
Solder |
| 5. Body Related Features: |
| 1) Port Configuration |
Single port |
| 2) EMI Fingers -Top and Sides |
With/Without |
| 3) Latch Orientation |
Standard - Latch Down |
| 4) PCB Tail Length |
3.50±0.50mm |
| 6. Contact Related Features: |
| 1) Preloaded |
Yes |
| 2) Contact Termination Type |
Through Hole |
| 7. Housing Related Features: |
| 1) Connector Style |
Jack |
| 8. Industry Standards: |
| 1) RoHS/ELV Compliance |
RoHS compliant, ELV compliant |
| 2) Lead Free Solder Processes |
Wave solder capable to 265°C |
| 3) RoHS/ELV Compliance History |
Always was RoHS compliant |
| 9. Identification Marking: |
| 1) Left LED Color |
Green or Yellow |
| 2) Right LED Color |
Green or Yellow |
| 10. Conditions for Usage: |
|
| 1) Applies To |
Printed Circuit Board |
| 2) Environmental Conditions |
Office / Premises |
| 3) Operating Temperature (°C ) |
0 - 70/-40 - +85 |
| 11. Configuration Related Features |
| 1) Magnetic Circuit |
3D15 |
| 2) Status Indicator |
Led |
| 3) Decoupling Capacitor |
With/Without |
| 4) Rear PCB Ground Tab |
With/Without |
| 5) Signal Lead Quantity |
8 |
| 12. Operation/Application: |
| 1) Application |
10/100 Base-T |
J3026G21DNL ethernet cable cavi ethernet for processor board Applications:
Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem
J3026G21DNL ethernet cable cavi ethernet for processor board Competitive Advantage:
17 years production experience,
2600 staff,
100% test
Flexible delivery time
